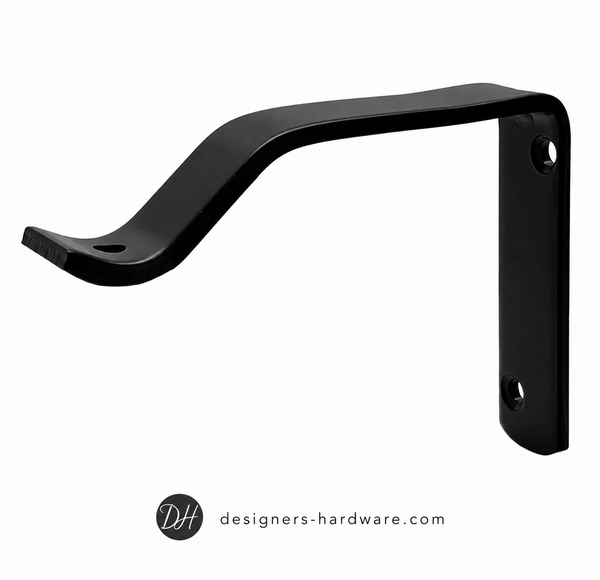

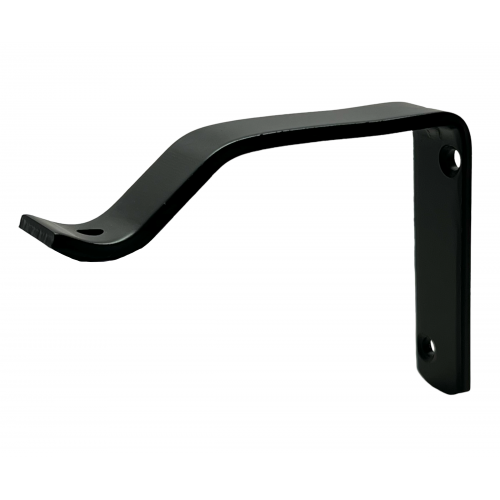

Vertical Mount C-Style Bypass Traverse Drapery Bracket for 1-1/8" Diameter Rods
Modern 1-1/8" vertical mount bypass bracket designed for functional drapery systems using 1-1/8" diameter round metal drapery rods and C-style bypass rings.
The vertical mount design provides a substantial 3" projection and 3-1/2" return while allowing compatible C-style bypass rings to travel past the bracket. This allows functional drapery panels to move smoothly across the rod without stopping at each supporting bracket.
Sold individually. Price is per bracket.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Vertical Mount C-Style Bypass Bracket |
| Compatible Rod Diameter | 1-1/8" (1.125") |
| Compatible Rod Type | Round Metal Drapery Rod |
| Bracket Style | Vertical Mount |
| Bracket Type | Bypass / Traverse |
| Projection | 3" from wall to back of rod |
| Return | 3-1/2" from wall to center of rod |
| Total Depth | 4" |
| Construction | Metal |
| C-Style Bypass Compatible | Yes |
| Application | Functional Drapery |
| Quantity | Sold Individually |
What's Included
1 Vertical Mount C-Style Bypass Bracket
Price is for one bracket.
C-style bypass rings and drapery rods are sold separately.
How the Bypass System Works
This bracket is designed to work with our 1-1/8" C-style bypass drapery rings.
Unlike traditional closed curtain rings, C-style bypass rings have an open design that allows them to travel past compatible supporting brackets.
This allows the drapery panel to continue moving across the entire length of the rod rather than stopping at each support bracket.
The system is particularly useful for:
- Functional hand-drawn draperies
- Traverse applications
- Large windows
- Wide window treatments
- Sliding glass doors
- Full-length draperies
- Residential and commercial installations

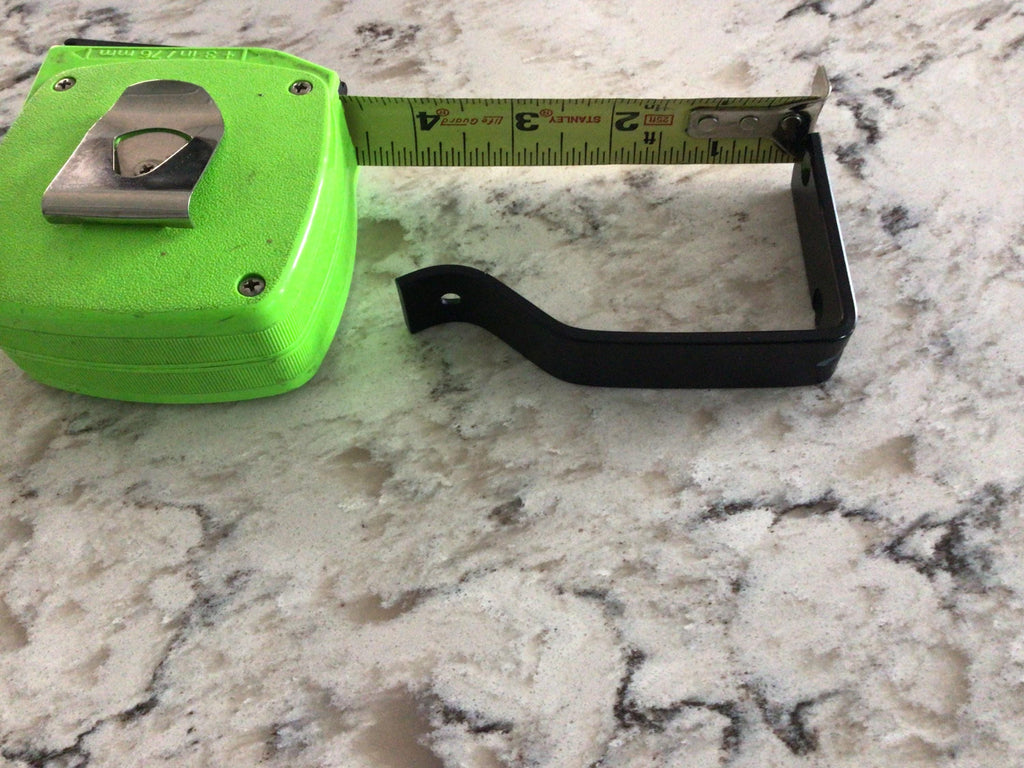

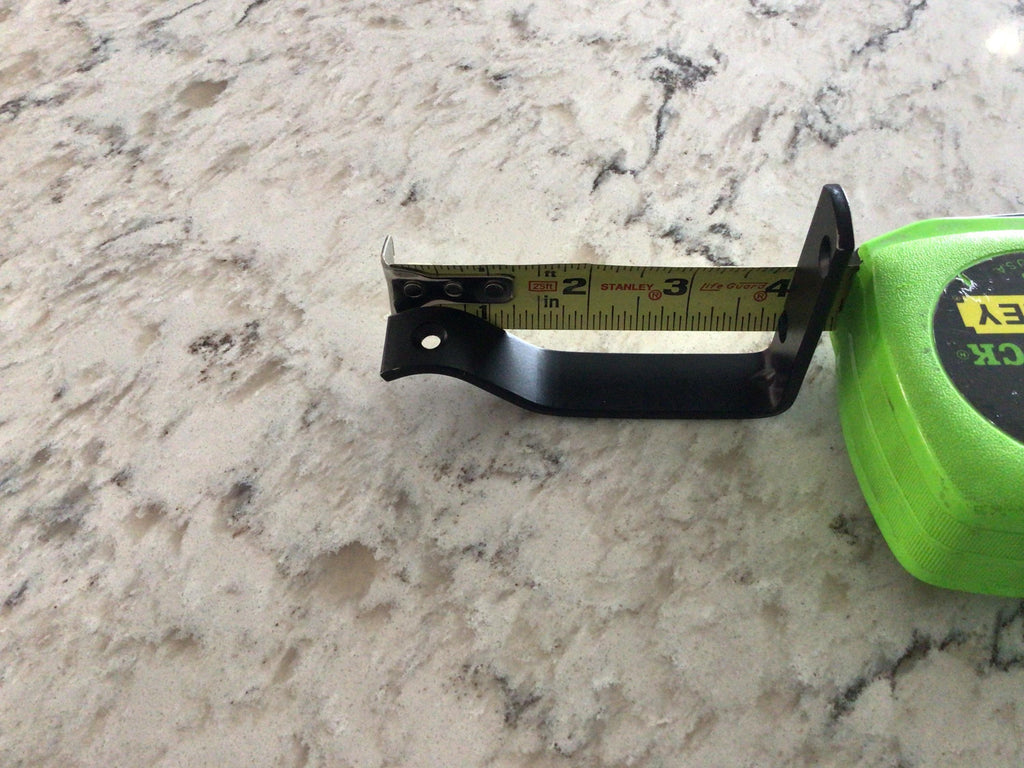

Bracket Dimensions
Projection: 3" from the wall to the back of the rod
Return: 3-1/2" from the wall to the center of the rod
Total depth: 4"
The extended projection and return provide the clearance required for compatible C-style bypass rings to travel past the bracket.
Compatibility
This bracket is designed specifically for:
Rod: 1-1/8" diameter round metal drapery rods
Rings: 1-1/8" C-style bypass drapery rings
For the bypass system to function properly, the bracket must be used with compatible C-style bypass rings.
Standard closed curtain rings are not designed to bypass this bracket.
Matching C-Style Bypass Rings
Our coordinating C-style bypass rings are available separately:
- 1-1/8" C-Style Bypass Ring – Single
- 1-1/8" C-Style Bypass Rings – 8 Pack
- 1-1/8" C-Style Bypass Rings – 50 Piece Bulk Box
The C-style rings include an eyelet for attaching drapery pins and are specifically designed to travel past compatible bypass brackets.
Available Finish
The standard finish shown for this bracket is:
Black
Additional designer finish options may be available depending on the hardware configuration.
If you need a specific finish for your project, contact our team before ordering.
Functional Drapery Applications
The Vertical Mount Bypass Bracket is ideal for:
- Functional hand-drawn curtains
- Traverse drapery systems
- Large windows
- Sliding glass doors
- Full-length draperies
- Wide window treatments
- Custom window treatments
- Residential interiors
- Commercial interiors
- Interior designer projects
The vertical architectural design provides a clean mounting appearance while maintaining the clearance required for bypass operation.
Complete Your 1-1/8" Drapery Hardware System
Coordinate this bracket with matching components from our 1-1/8" Diameter Drapery Hardware Collection:
- 1-1/8" Round Metal Drapery Rods
- 1-1/8" C-Style Bypass Rings
- 1-1/8" Horizontal Mount Bypass Brackets
- 1-1/8" Traverse Brackets
- Decorative Finials
- End Caps
- Loop Style Brackets
- Inside Mount Brackets
- Ceiling Mount Brackets
- Decorative Wands / Batons
Use the compatible rod, bypass rings, and brackets together to create a complete functional hand-drawn drapery system.
Professional Drapery Hardware
Designers-Hardware specializes in custom decorative and functional drapery hardware for interior designers, decorators, builders, architects, workrooms, installers, trade professionals, and homeowners.
Our collections include custom curtain rods, bypass drapery systems, drapery rings, brackets, finials, connectors, traverse systems, ripple fold systems, track hardware, acrylic drapery hardware, and specialty window treatment components.
Need help determining bracket spacing, rod length, bypass ring requirements, or the correct hardware configuration for your project?
Contact our team with your window dimensions and drapery specifications.
